TB-S
KXITE

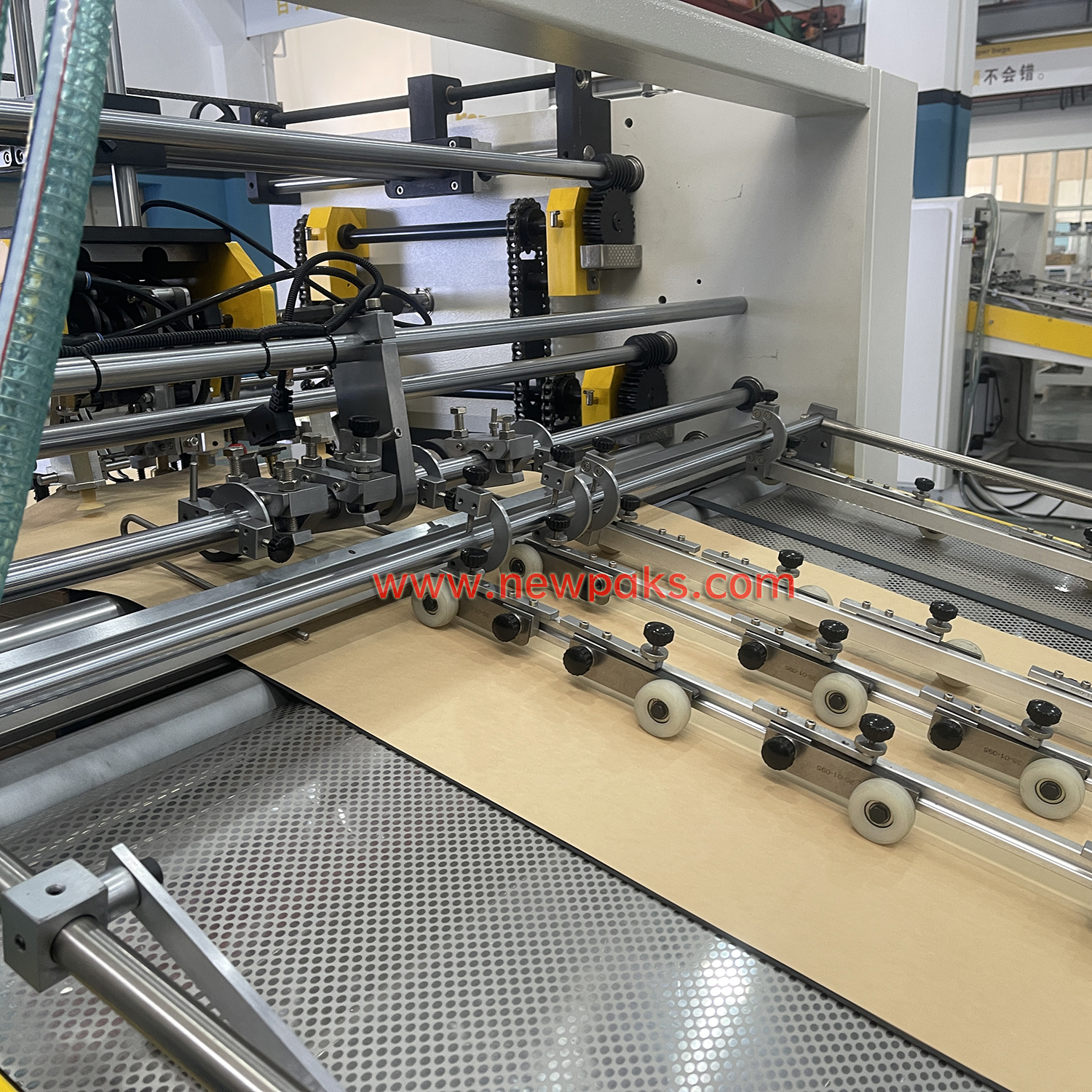

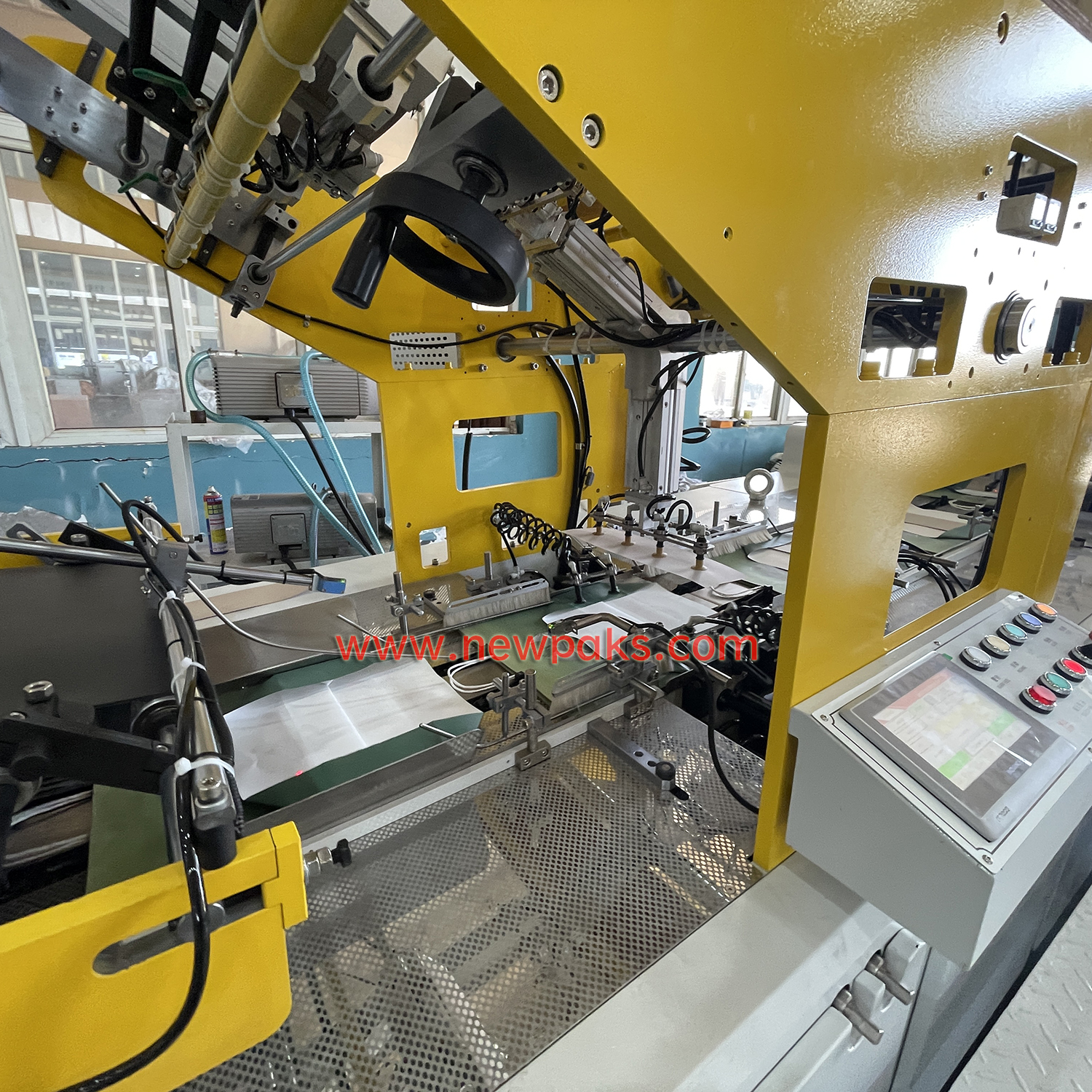

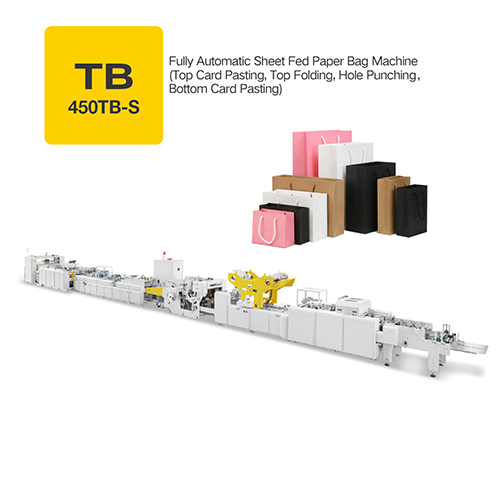

TB-S series is a fully automatic paper bag machinewith top card and bottom card pasting function. After sheet paper feeding, pre-creasing, top card pasting,top folding, side gluing, tube forming, hole punching,bottom card pasting, and bottom gluing to output finished bags.
Main Technical Parameters
| Model | KL-350TB-S（Sheet type top cardboard pasting） |
| Paper Bag Width | 200-350mm |
| Paper Sheet Width | 530-1040 mm |
| Paper Sheet Length | 290-600mm |
| Paper Types/Paper Weight | A .White / Brown Kraft Paper : 120-250g/m2 B.Art Paper + PP Laminating : 157-230g/m2 C. White Cardboard + PP Laminating : 150-250g/m2 D.Grey Paperboard + PP Laminating : 150-300g/m2 |
| Recommend that paper thickness above 200gsm die cutting before operation) | |
| Glue Type | Water Glue/Hot Glue Systerm |
| Top Reinforce Paper Roll Diameter | φ600mm |
| Top Reinforce Roll Paper Weight | 100-350g |
| Top Reinforce Roll Paper Width | 170-340mm |
| Top Reinforce Paper Cutting Length | 20-50mm |
| Paper Bag Bottom/Gusset | 70-150mm |
| Max.Bottom Reinforce Paper Card(W×L) | 144× 344mm |
| Min.Bottom Reinforce Paper Card(W× L) | 64×194mm |
| Bottom Reinforce Paper Card Weight | 150-400g |
| Working Speed | 40-60pcs/min |
| Punching Hole Spacing | 80-120mm Note: Above punching hole spacing are our standard parameters,which can be customized according to client's requirement. |
| Punching Hole Diameter | φ4 φ5 φ6mm |
| Total Power | 30KW 380V 50Hz |
| Machine Weight | 14T |
| Machine Dimension(L× W× H) | 23000×1930×1920mm |
