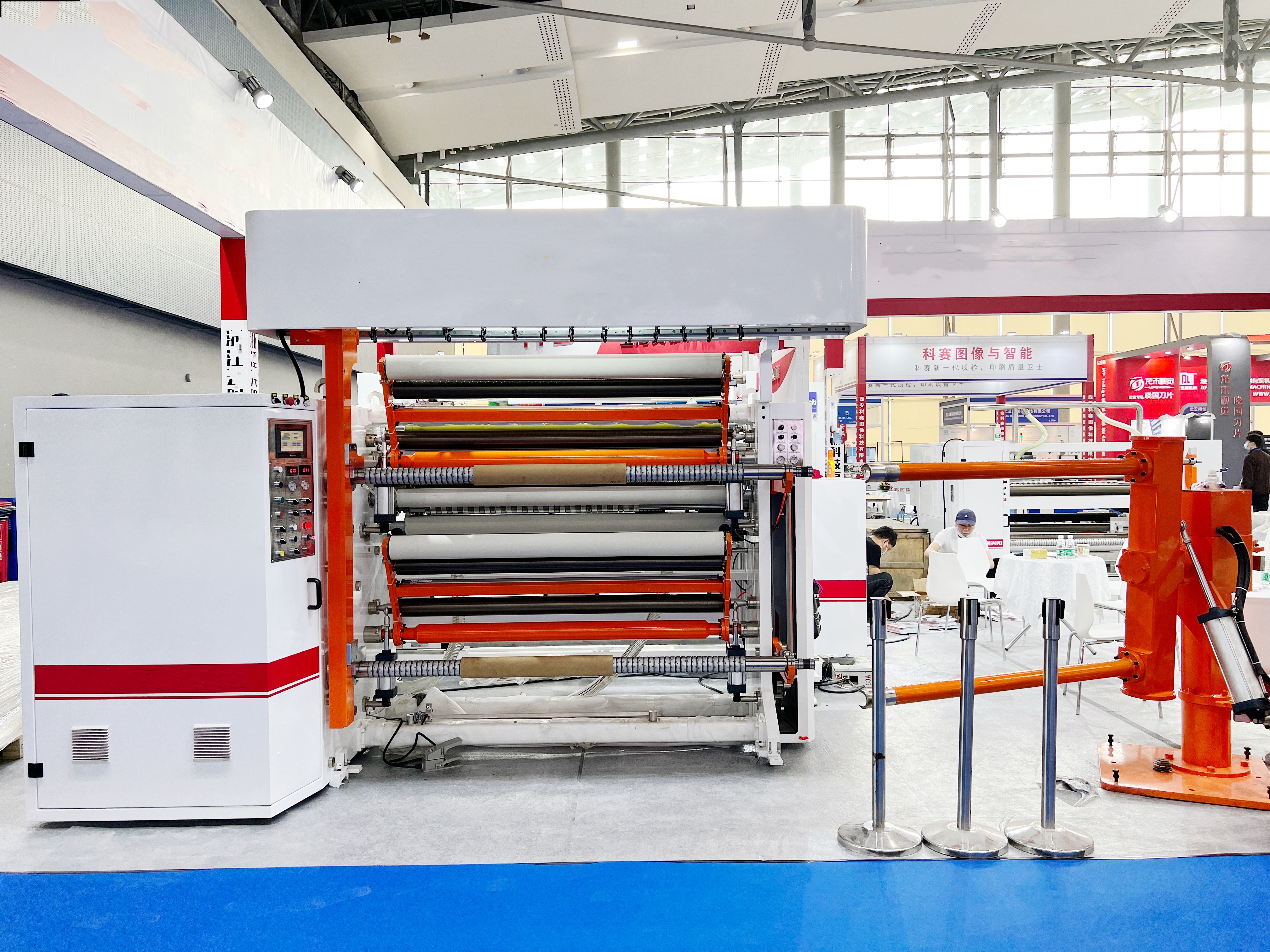

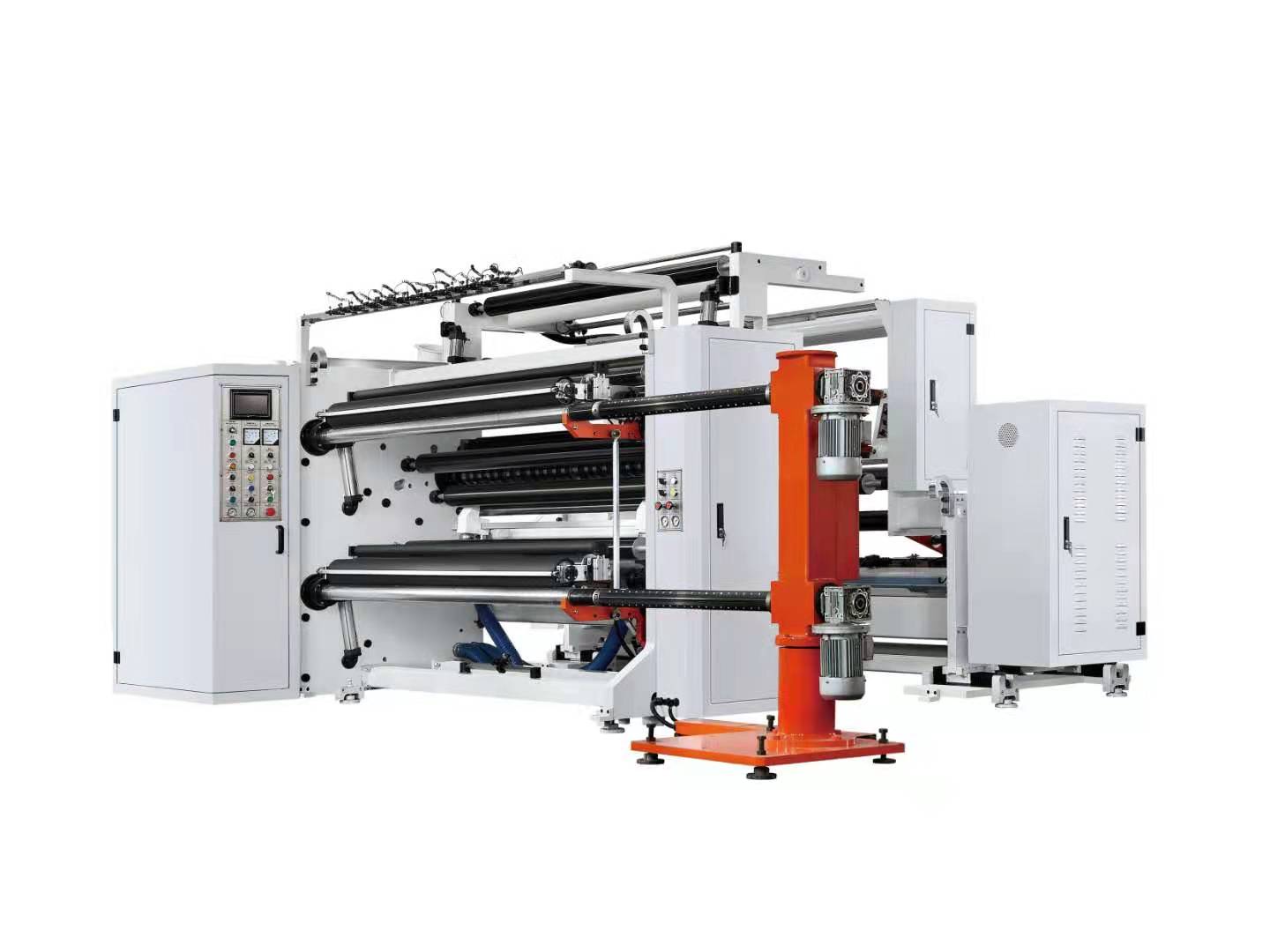

Main technical parameters
Model | FHQG-1600 |
Max width of raw material | 1600mm |
Max diameter of unwind | 1200mm |
Max machinery speed | 400m/min |
Max diameter of rewind | 800MM |
Max slitting width | 50MM |
Weight of machine | 8000KG |
Total power | 31KW |
Overall dimension (L*W*H) | 4100*5000*2100MM |
Maximum unwinding diameter φ1200mm
Maximum winding diameter φ800mm
Maximum material width 1650mm
Minimum slitting width 50mm
Diameter of winding paper tube 3″
Diameter of unwinding paper tube 3/6″
Maximum mechanical speed 400m/min
Correction accuracy ≤0.40mm
Unwinding motor Air brake (2 units)
Winding motor power 11kw (2 sets)
Traction motor power 7.5kw
Total machine power 31kw
Machine dimensions 4100 (L) × 5000 (W) × 2100mm (H)
Machine weight about 8000kg
Applicable materials: paper, adhesive label
Machine color milky white (other colors are optional)
Unwinding Department
Structure
Independent unwinding rack
The unwinding rack adopts shaftless loading, the unwinding rack can be raised and lowered hydraulically, and the width can be adjusted hydraulically
EPC horizontal correction mechanism
Automatic tension control
The unwinding rack is installed with the receiving platform
Offset roller and guide roller
Structure
The structure of deviation adjustment is manual
One end of the deflecting roller is fixed and the other end is adjusted forward and backward
The deflecting roller and guide roller adopt imported bearings
Specifications
The diameter of the deflecting roller φ100 mm
The length of the deflecting roller 1450 mm
Range of deviation adjustment ±20 mm
Guide roller diameter φ100 mm
Guide roller length 1450 mm
Traction drive
Structure
AC variable frequency motor drive
Synchronous belt drive
The active traction roller adopts steel roller and rubber roller structure, S-shaped layout
The rotating body adopts imported bearings
Slitting part
Round knife slitting
The edge material is blown by the exhaust fan in the slitting part
The bottom knife shaft has an inflation function
Bottom knife with auxiliary tool adjustment function
Rewinding pressure roller
Structure
Swing arm type press roller
The clutch pressure is pneumatic, and the pressure is adjusted by a precision pressure regulating valve
Specifications
Roller diameter φ100mm
Roller surface length 1450mm

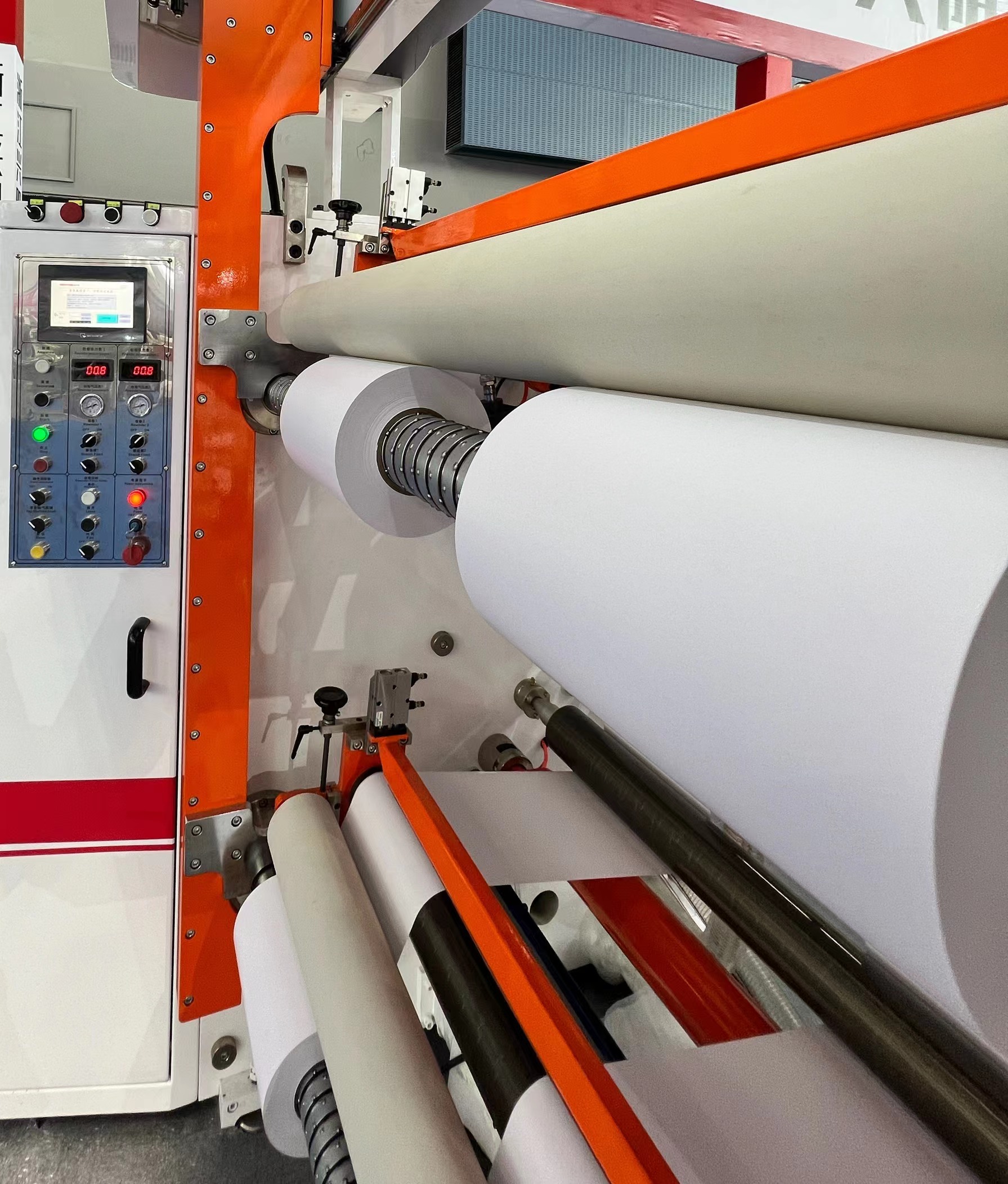

Rewinding parts
Structure
Double slip shaft up and down winding
Automatic tension control
The rewinding shaft is supported by a support arm
Support arm control adopts pneumatic
Infrared paper tube positioning device
Rewinding install static elimination device
The rewinding adopts ultrasonic sensor to automatically measure the reel diameter

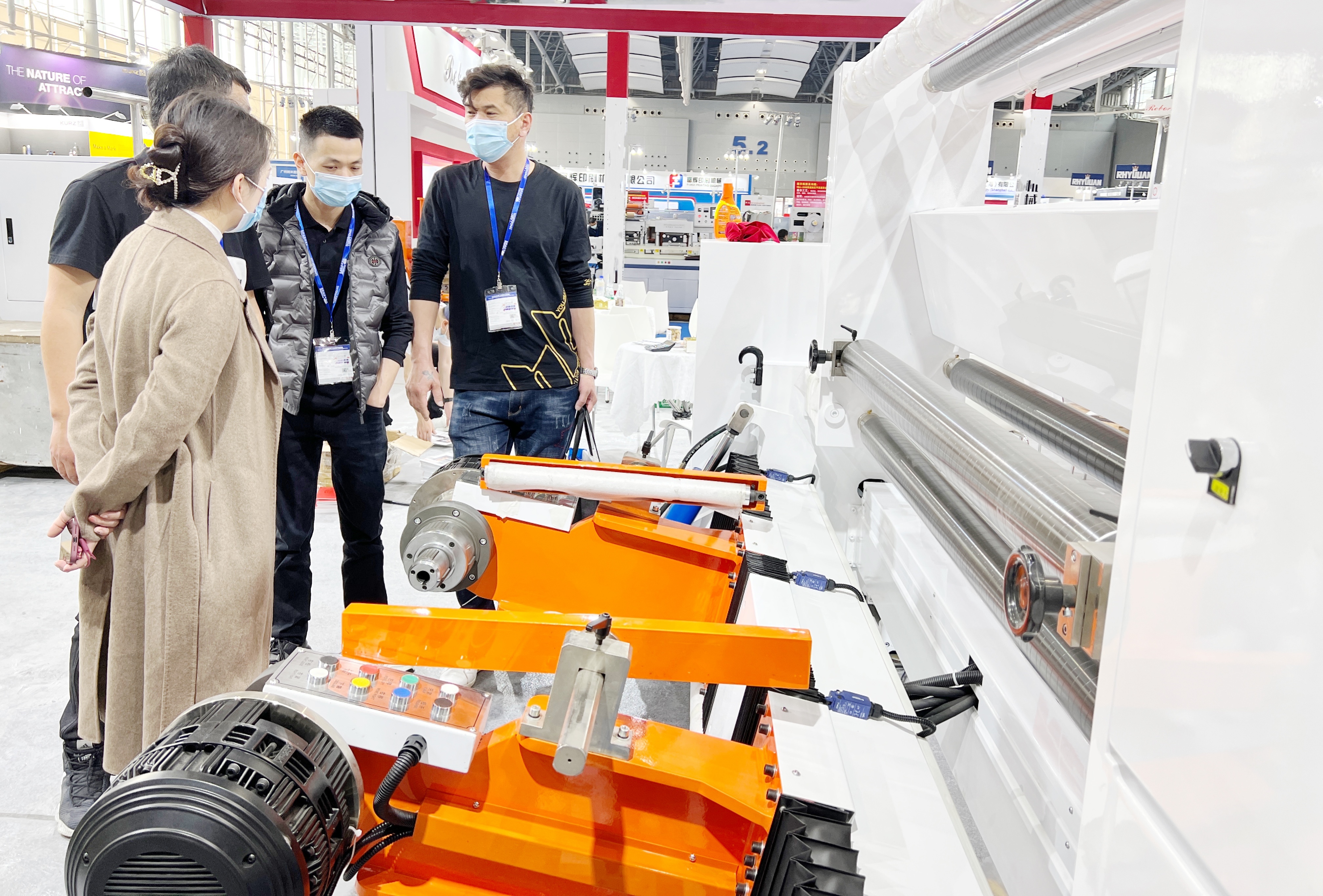

Unloading device
There is a chassis at the bottom of the unloading device, which can adjust the height
Two unloading shafts are connected to the receiving shaft. When the receiving shaft support arm is retracted, the finished product roll can be moved to the unloading shaft and rotated around the central shaft to the unloadable part to be unloaded.
With automatic feeding function
Pneumatic hydraulic system
●The machine adopts pneumatic and hydraulic actuators more, centralized operation by the panel, and execution through solenoid valve, which has a high degree of automation and reduces labor intensity
Electrical control system
Using man-machine interface, PLC centralized control, advanced technology
Man-machine interface, display and set the host speed, rewinding length, and set the tension of unwinding and rewinding
List of main accessories
PLC Siemens
Man-machine interface Weilun
Inverter Yaskawa, Japan
Correction controller Chongqing Bianfu
Rectifying DC motor Chongqing Bianfu
Main motor Danma asynchronous motor
Winding motor Danma asynchronous motor
Unwinding motor air brake
Main pneumatic components Airtac, Taiwan
Electric proportional valve Japan SMC
Precision pressure regulating valve Japan SMC
Ultrasonic sensor Japan
Main bearings, Japan NSK
Main low-voltage electrical appliances Schneider, France
Rail Japan THT
20 sets of round knives
Accessories
Inner hexagon wrench 1 set
1 open-end wrench
Phillips screwdriver 1
1 flat-blade screwdriver
Grease gun 1
