KXT-ZUF
KOXTE
8441309000

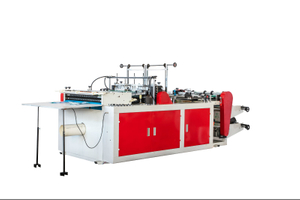

Automatic Synchronization and tension control system , PLC automatic routing,operation and control of various logic state, setting barrier impaired diagnostic information systems and machinery management system . nu reeling pneumatic shaft. Horizontal feeding material by servomotor to ensure the accurate feeding length.Horizontal material hot press by type of mechanical movement, to avoid the instability resulting vapor- action,short life of the disadvantages. feeding quickly and smoothly.Sample bags aesthetic appearance. This special bag production equipment is our company main products, our company is the only manufacturer of this equipment for this production in China.
MAIN TECHNICAL VARIABLES
Type | KXT-UZF |
Equipment atitude | 700/800/1000mm |
Reel specifications | 1350*φ700 mm.Automatic feeding |
Crew Reel Size | 150*φ500 mm |
Bag width | 80-400mm |
Bag height | 100-600 mm |
Organ depth | 20- 70mm |
Bagging speed | 50--80knives / minute |
Release length | 24m/min |
Bag roll | 2 Rolls |
Main motor | 5.0KW(Japan Panasonic) |
Traction motor | 1.5KW,1.5KW,1.5KW,2KW(Japan Panasonic) |
Organ control the bottom of the servo motor | 1.5KW |
Original film and organ feeding motor | (1 group) , 0.75KW , 0.4KW |
Temperature control | 36 groups |
Voltage | 220V / 380V 1440V, 3-phase, 50/60 HZ |
Total power | 72KW |
Total weight | 7500KG |
Body Dimensions (L *W* H) | 19000* 2500*2200mm |
Function | (double out with a slider zipper bag, double out of the square ( flat ) bottom without zipper bag, double out of the four pressure side band slider zipper bag) |
Material | BOPP,PP,PE,(Nylon. Aluminized, kraft paper and other composite film) |
Control system | PLC control, touch screen display front and rear segmented control |
Increased purchase function | can be given a slider zipper, easy tear zipper, tape, easy to bond zipper and other function |
KXITE is continuously seeking for development of their products. For this reason, KXITE reserves the right to supply the improved product without advance notice.
Remark: Real operation speed is variable due to different pouch shape, material and size.
Automatic Synchronization and tension control system , PLC automatic routing,operation and control of various logic state, setting barrier impaired diagnostic information systems and machinery management system . nu reeling pneumatic shaft. Horizontal feeding material by servomotor to ensure the accurate feeding length.Horizontal material hot press by type of mechanical movement, to avoid the instability resulting vapor- action,short life of the disadvantages. feeding quickly and smoothly.Sample bags aesthetic appearance. This special bag production equipment is our company main products, our company is the only manufacturer of this equipment for this production in China.
MAIN TECHNICAL VARIABLES
Type | KXT-UZF |
Equipment atitude | 700/800/1000mm |
Reel specifications | 1350*φ700 mm.Automatic feeding |
Crew Reel Size | 150*φ500 mm |
Bag width | 80-400mm |
Bag height | 100-600 mm |
Organ depth | 20- 70mm |
Bagging speed | 50--80knives / minute |
Release length | 24m/min |
Bag roll | 2 Rolls |
Main motor | 5.0KW(Japan Panasonic) |
Traction motor | 1.5KW,1.5KW,1.5KW,2KW(Japan Panasonic) |
Organ control the bottom of the servo motor | 1.5KW |
Original film and organ feeding motor | (1 group) , 0.75KW , 0.4KW |
Temperature control | 36 groups |
Voltage | 220V / 380V 1440V, 3-phase, 50/60 HZ |
Total power | 72KW |
Total weight | 7500KG |
Body Dimensions (L *W* H) | 19000* 2500*2200mm |
Function | (double out with a slider zipper bag, double out of the square ( flat ) bottom without zipper bag, double out of the four pressure side band slider zipper bag) |
Material | BOPP,PP,PE,(Nylon. Aluminized, kraft paper and other composite film) |
Control system | PLC control, touch screen display front and rear segmented control |
Increased purchase function | can be given a slider zipper, easy tear zipper, tape, easy to bond zipper and other function |
KXITE is continuously seeking for development of their products. For this reason, KXITE reserves the right to supply the improved product without advance notice.
Remark: Real operation speed is variable due to different pouch shape, material and size.
