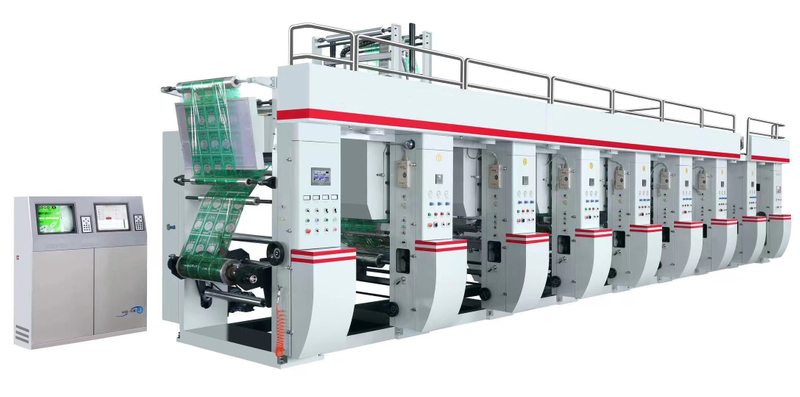

This machine is used to print bopp, pet, pvc, pe, cpp, nylon, paper, aluminum foil etc. Max printing speed 120-130m/min, automatic register with video inspection monitor, automatic tension control, pneumatic doctor blade and pressing roller.
1.Printing width: 720-1100mm (according to DSAY1100E)
2.Mechanical speed: Max 150m/min(Printing plateф150mm)
3.Printing speed: Max 100-120m/min (Printing plateф150mm)
4.Printing plate dia: ф120-ф380mm
5.Guiding roller width: 1130mm.
6.Unwinding dia: Max 600mm
7.Rewinding dia: Max 600mm
8.Paper core dia: Inner 76mm, outer 92mm.
9.Unwinding tension: Max 15N.M
10.Unwind traction tension: 50N/m (Auto sensor control)
11.Rewinding tension: Max 40N/m
12.Rewind traction tension: Max 10N/m (Torque control)
13.Registration precision: Vertical ±0.1mm (Computerized control)
14.Pressing printing strength: 235kg
15.Doctor blade movement: ±5mm
16.Drying method: Electric heating
17.Heating power: Each color 12kw
18.Main motor:11KW(Frequency motor)
19.Power supply: 380V±10%，50Hz，three phase four lines
20).Video inspection system:KESAI
Specification (Based on 6 colors)
Model | DSAY800E | DSAY1100E |
Printing width | 800mm | 1100mm |
Material width | 830mm | 1130mm |
Printing cylinder diameter | φ100-350mm | φ100-350mm |
Printing speed | 120-130m/min | 120-130m/min |
Unwind diameter | 600mm | 600mm |
Rewind diameter | 600mm | 600mm |
Register accuracy | ±0.1mm | ±0.1mm |
Total power | 76KW | 89KW |
Weight | 11000KG | 12000KG |
Dimension | 10600*2900*3020mm | 10600*3200*3020mm |
FEATURES:
1. Unwind double magnetic powder brake automatic tension control
2. Infeed magnetic powder control and outfeed torque motor control
3. Main motor inverter motor control
4. Rewind double torque motor control
5. Shaftless pneumatic printing cylinder installation
6. Pneumatic pressing roller
7. Pneumatic doctor blade, pneumatic ink pump
8. Automatic computer register with video inspection

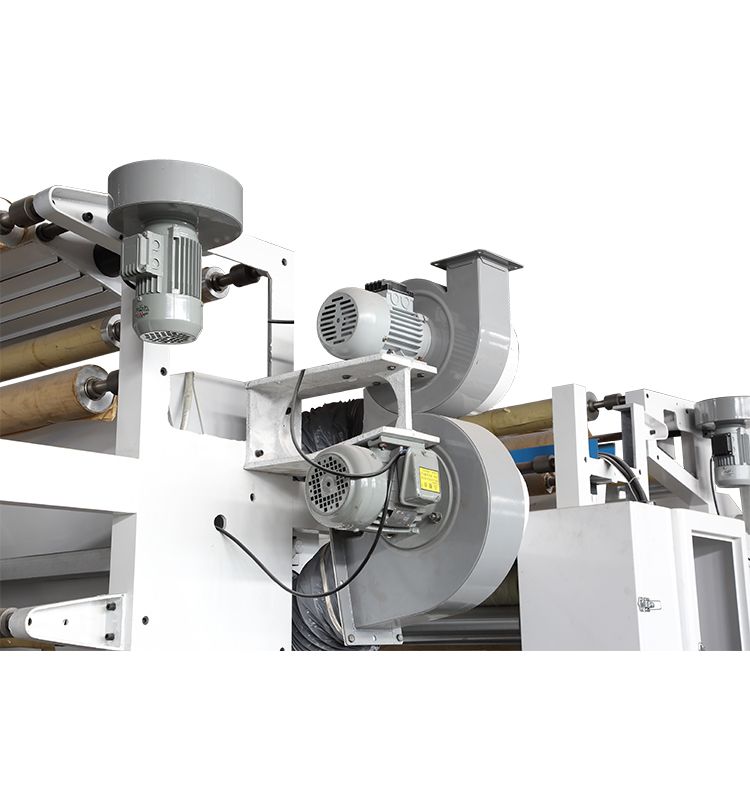

9. Independent drying and suction exhausting system
